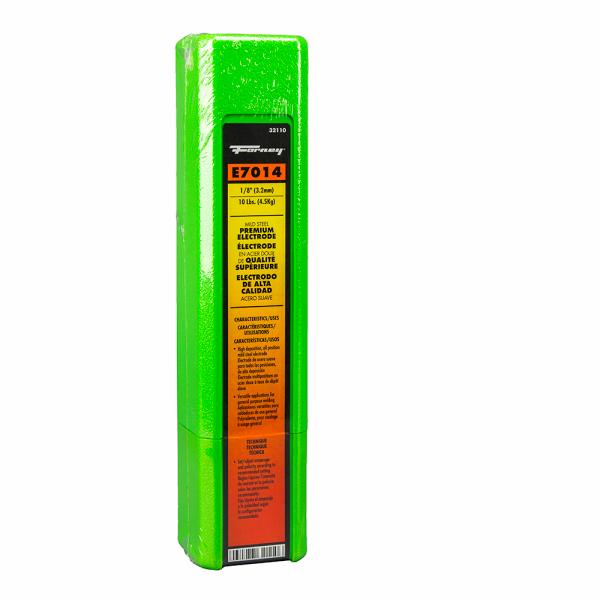

FORNEY 32110 7014 - 1/8" - 10 lbs - Electrode Welding Rod

SKU: 32110 Category:


2 in stock


The Forney 32110 7014 Mild Steel Super Contact is a mild steel, iron powder type electrode with medium to shallow penetration. It's known for smooth arc characteristics, good arc stability and low spatter. Excellent for sheet metal and ornamental iron work on poorly fitted joints. Easy to operate. Excellent for sheet metal and ornamental ironwork on poorly fitted joints. 1/8-Inch ie.3.18 mm diameter rod. 10-Pound ie.4.54 Kg box of rod. Tensile Strength is 70,000 PSI. Amperage range is 110-145 amps. Typical Spec Example E6011: E is for electrode. The next two numbers ie.60, 70 or 80 indicates the tensile strength of the rod for example 60,000. The third number tells the welding position; ie.1=All position ie.2=Flat or Horizontal position ie.4=Flat, Horizontal, Overhead and Vertical Down position. The fourth number indicates the type of current to be used and coating of the rod; ie.0=Cellulose Sodium, with deep penetration, use Direct Current Electrode Positive ie.1=Cellulose Potassium, with deep penetration, use AC or Direct Current Electrode Positive, or Direct Current Electrode Negative ie.3=Titania Potassium, with light penetration, use AC or Direct Current Electrode Positive ie.8=Low Hydrogen, Iron Powder, with medium penetration use AC or Direct Current Electrode Positive. Claims for warranty must be made within 90 days of the date of purchase. Proof of purchase required. This warranty does not cover any product that has been subject to misuse, neglect, negligence or accident, or that has been used in any way contrary to the purpose intended.

Additional information

Weight 10 lbs
Dimensions 14 × 2 × 4 in


There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
