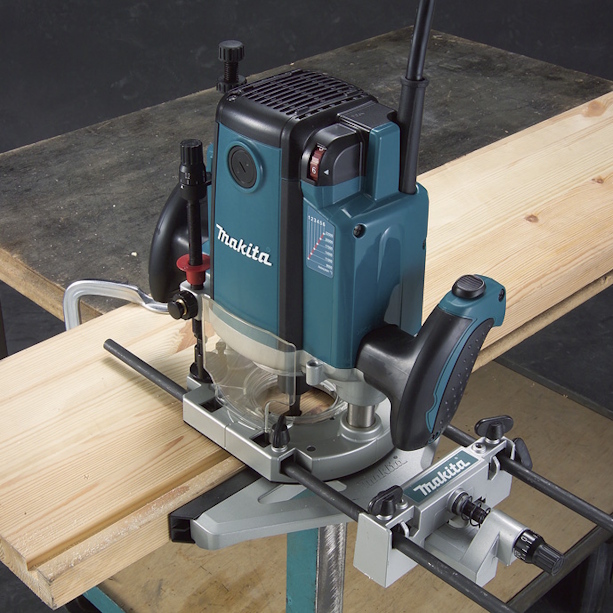

MAKITA RP2301FC 3-1/4" HP Plunge Router

SKU: RP2301FC Category:


1 in stock


3-1/2 hp Plunge Router

- Electronic Speed Control maintains constant speed under heavy load
- Linear Bearing Slide Mechanism allows extremely smooth plunge action
- Larger Ball Bearings on Armature enhance durability of tool
- Labyrinth Retainers and Fan prevent contamination of motor
- Plunge Depth can be adjusted from the bottom of the router when mounted in a router table
- Trigger Switch with Lock-On/Off Button located on handle for operator convenience
- 3 Stage Depth Adjustments ideal for use when performing deep or repetitive cutting operations
- Four Raised Ribs on top of Motor Housing provide a stable platform during bit changes
- Dual LED Job Lights with Afterglow
- Sub-Base accepts industry standard template guides
- Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
- Can be used with 55" (194368-5) or 118" (194367-7) Guide Rails and Router Guide Rail Adapter (194579-2) for precision routing applications

Items Included: Depth Adjustment Knob (158980-5), 1/4" Collet Sleeve (763803-0), 1/2" Collet Cone (763622-4), Wrench 24 (781030-7)

Collet Capacity: 1/2" (12.7 mm)
Plunge Capacity: 2-3/4" (70 mm)
No Load Speed: 9,000 - 22,000 RPM
AMPS (120V): 15.0 A
Vibration Level: 4.5 m/s2
Noise Level: 87 dB(A)
Base Diameter: 6-11/16" (170 mm)
Overall Height: 12-1/4" (312 mm)
Net Weight: 13.4 lbs (6.1 kg)

Additional information

Weight 15.43 lbs
Dimensions 13.39 × 9.45 × 13.19 in
