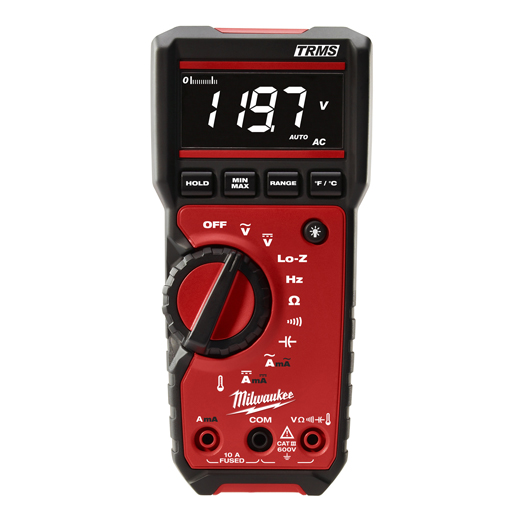

MILWAUKEE 2217-20 Digital Multimeter

SKU: 2217-20 Category:


Available on backorder


The Milwaukee True RMS Multimeter is a heavy duty meter for professional residential, commercial and industrial applications. The perfect tool for professional electricians, the 2217-20 offers functionality users expect with features that make doing the job easier. The 2217-20 True RMS Multimeter features a large white on black display for clearer readings, a slide rail system to add proprietary accessories and rugged over-molding for increased durability and grip. The meter is rated to CATIII 600V and meets UL safety specifications required by electrical users.

Wide Voltage range to 600 volts AC/DC
Auto range to millivolts and milliamp ranges
True RMS for accurate measurement in all applications
Lo-Z measurement to eliminate ghost voltage
Frequency measurements from 10Hz to 50kHz
Contact temperature measurement from -40 to 752°F
Current Measurement to 10 amps AC/DC
High Contrast, White on Black Display with Backlight for easy reading
Rugged over-molding increases durability and user grip

Product Specifications
Battery Type Alkaline (AA)
Display Type White on Black LCD
Switch Type Dial
Current AC DC 10.00A
Voltage AC DC 600V
Frequency 10 Hz - 50.00 kHz
Resistance 40MO
Continuity Audible
Capacitance 1,000µF
Contact Temperature -40° F to 752° F (-40° C to 400° C)
Safety Category Rating CAT III 600V
Lo Z Yes
Backlight Yes
Bargraph Yes
Rugged Overmolding Yes
Accessory Attachment Magnetic Meter Holder
Calibration Needed Yes - Recommend calibration service once every year

Additional information

Weight 1.59 lbs
Dimensions 10.04 × 6.61 × 3.27 in
