POWERS 7404SD1-PWR POWER-STUD + SD1 1/4" x 3-1/4" 100/BX

Description

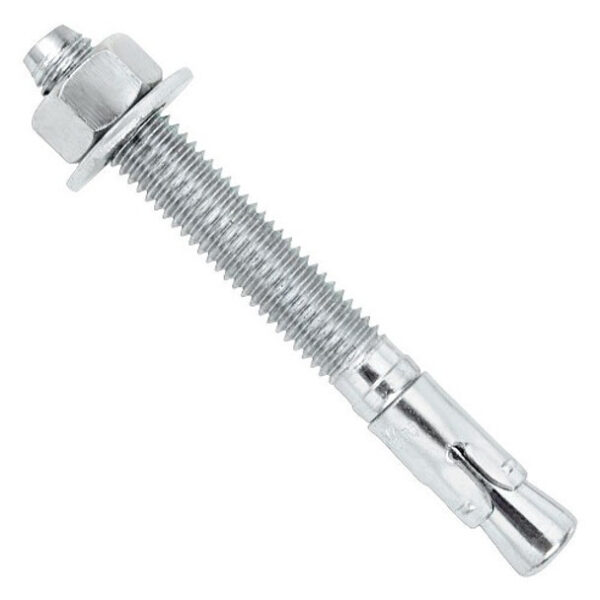

Concrete Wedge Anchor 1/4" X 3-1/4" Zinc Plated
The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, lightweight concrete, concrete over steel deck and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
Features:

Consistent performance in high and low strength concrete
Nominal drill bit size is the same as the anchor diameter
Anchor can be installed through standard fixture holes
Length ID code and identifying marking stamped on head of each anchor
Anchor design allows for follow-up expansion after setting under tensile loading
Package Quantity of 100 pieces -Sold per piece
Applications:

Structural connections, i.e., beam and column anchorage
Safety-related attachments
Barriers and guards
Fencing and railing
Mezzanines and racking
Tension zone applications, i.e., cable trays and strut, pipe supports, fire sprinklers
Trapeze / overhead utilities
Ledgers, angles and brackets
Equipment anchorage
Seismic and wind loading (SDC A - F)
