POWERS 7417SD1-PWR PARAWEDGE 3/8" x 7" 50/BX ***13588

Description

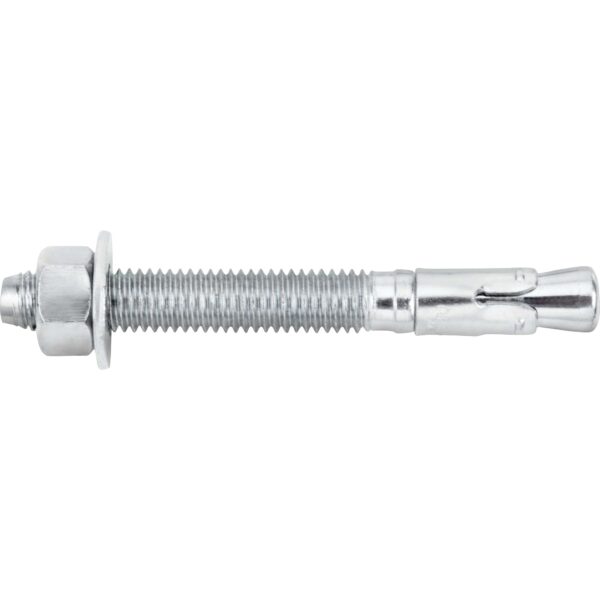

WEDGE EXPANSION ANCHOR
The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.

FEATURES & SPECS
Consistent performance in high and low strength concrete
Nominal drill bit size is the same as the anchor diameter
Anchor can be installed through standard fixture holes
Length ID code and identifying marking stamped on head of each anchor
Anchor design allows for follow-up expansion after setting under tensile loading

Anchor Size - 3/8" X 7"
Anchor Diameter - 3/8"
Useable Length - 7"
Thread Length - 5-5/8"
Pack Qty - 50
