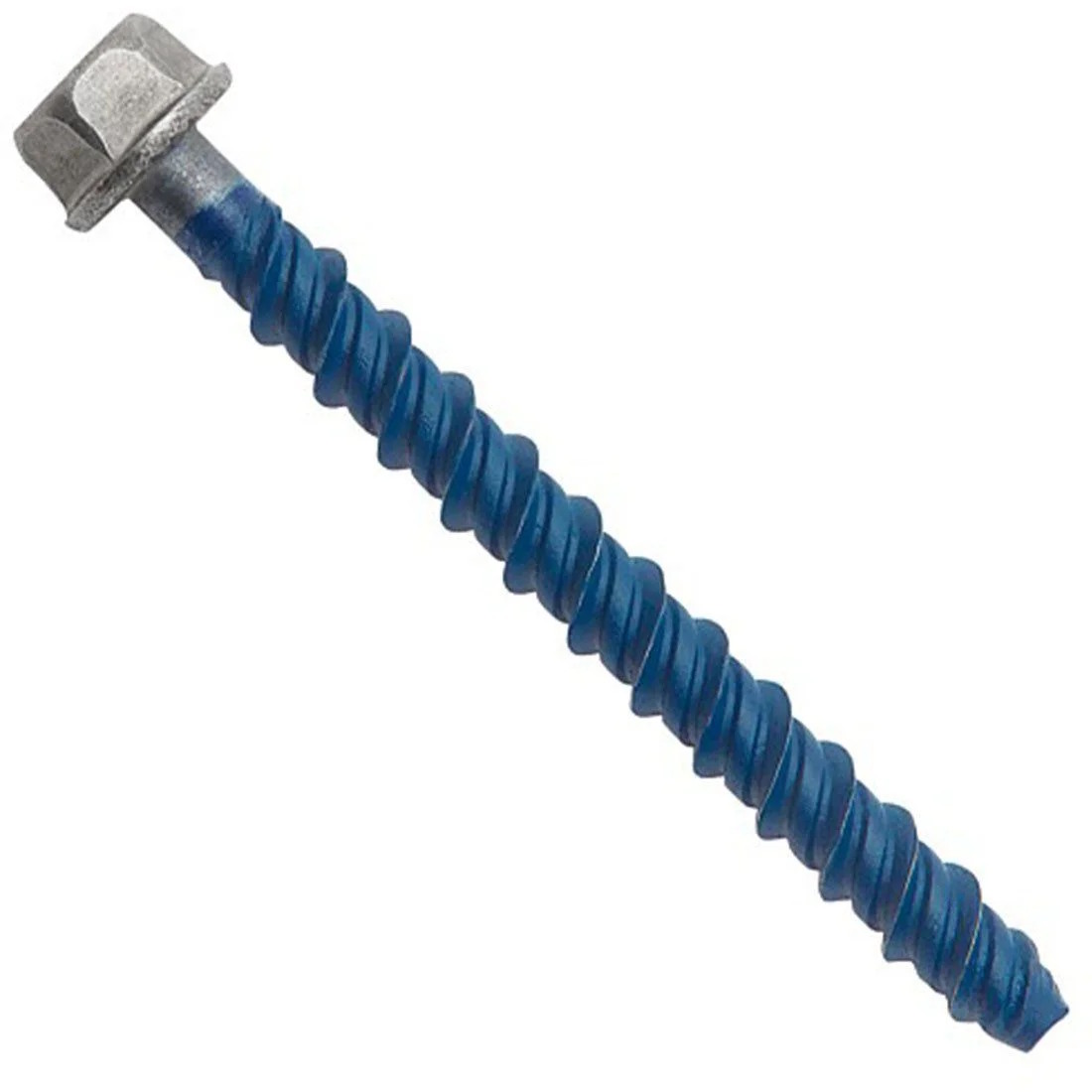

SST TNT25134H Tapcon Hex Head 1/4" x 1-3/4" 100/bx

Description

The Titen Turbo screw anchor features an innovative Torque Reduction Channel to trap drilling dust where it can’t obstruct thread action, significantly reducing binding, stripping, and snapping without compromising strength. The patented reverse thread design enables smooth driving with less torque while providing superior holding power. The Torque Reduction Channel also allows more space for dust to help prevent anchors from bottoming out in smaller-diameter screw holes. The Titen Turbo screw anchors feature a serrated leading edge to cut into concrete or masonry, and a pointed tip for fast, easy installation in wood-to-concrete and wood-to-wood anchoring applications.

Key Features
Patented Torque Reduction Channel that displaces dust where it can’t obstruct the thread action, reducing the likelihood of binding in the hole.
Available with either a hex head or, for a flush profile, a 6-lobe-drive countersunk flat head or trim head.
6-lobe drive provides positive bit engagement resulting in easy installations and long bit life.
6-lobe bit included in packaging for countersunk flat head and trim-head version.
Superior tension load performance.
Matched-tolerance bit not required; use a standard ANSI drill bit for installation.
Serrated screw point for easier starts when fastening wood.
Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended.
Use in dry interior environments only.
Code listed in accordance with ICC-ES AC193 for uncracked concrete and ICC-ES AC106 for masonry applications without cleaning dust from predrilled holes.

Applications
Electrical boxes, conduit, switch boxes, light fixtures, windows, thresholds, basement furring strips, shelf mounting to concrete/CMU, handrails

Product Includes
6-lobe bit included in packaging for flat-head and trim-head versions. 100-count flat-head and trim-head quantities include (1) bit. 1,000-count flat-head and trim-head quantities include (2) bits.
Retail packages of 8-count and 25-count do not include a drive-bit.

Material
Carbon steel

Finish
Zinc plated with a baked-on ceramic coating
