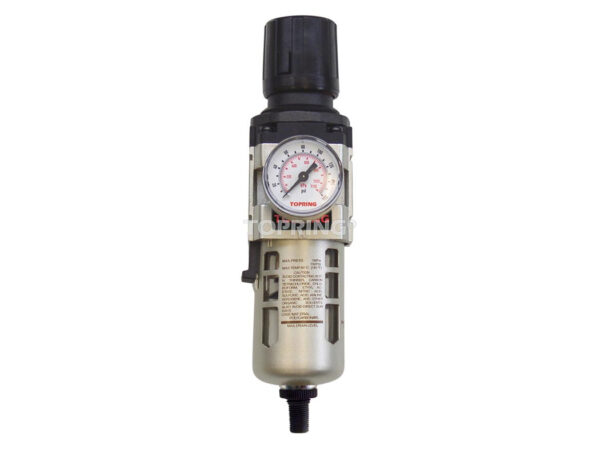

TOPRING 51.356 AIRFLO 300 Integrated F/R 3/8 Auto

Description

• Port Size: 3/8 (F) NPT
• Maximum Airflow at 100 PSI: 70 SCFM
• Maximum Working Pressure: 150 PSI
• Pressure Range: Standard: 5-125 PSI
• Options: 5-30 PSI • 5-60 PSI
• Working Temperature: 5 to 60 °C
• Filtration: 5 microns
• Drain: Automatic drain
• Bowl Capacity: 20 ml
• Pressure Gauge Port Size: 1/8 (F) NPT

Material(s):
• Body Material(s): Die cast Aluminum
• Bowl Type:Polycarbonate with steel guard
• Bowl Guard: Steel
• Regulation Type: Relieving
• Filter Element: Polyethylene, 5 microns
• Deflector & Spinner: ABS
• O-Rings & Seals: EPDM rubber
• Regulator Cap: Reinforced nylon
• Regulator Adjusting Knob: Reinforced nylon
• Diaphragm: EPDM rubber
• Poppet Valve: Brass and rubber
• Regulator Spring: Stainless steel

Features and benefits
• Space saving integrated filter/regulator design
• Removes water through centrifugal force
• Removes contaminants down to 5 micron in size
• Accurate pressure control with little drift
• Removable locking push-pull adjusting knob
• Pressure gauge and mounting bracket included
