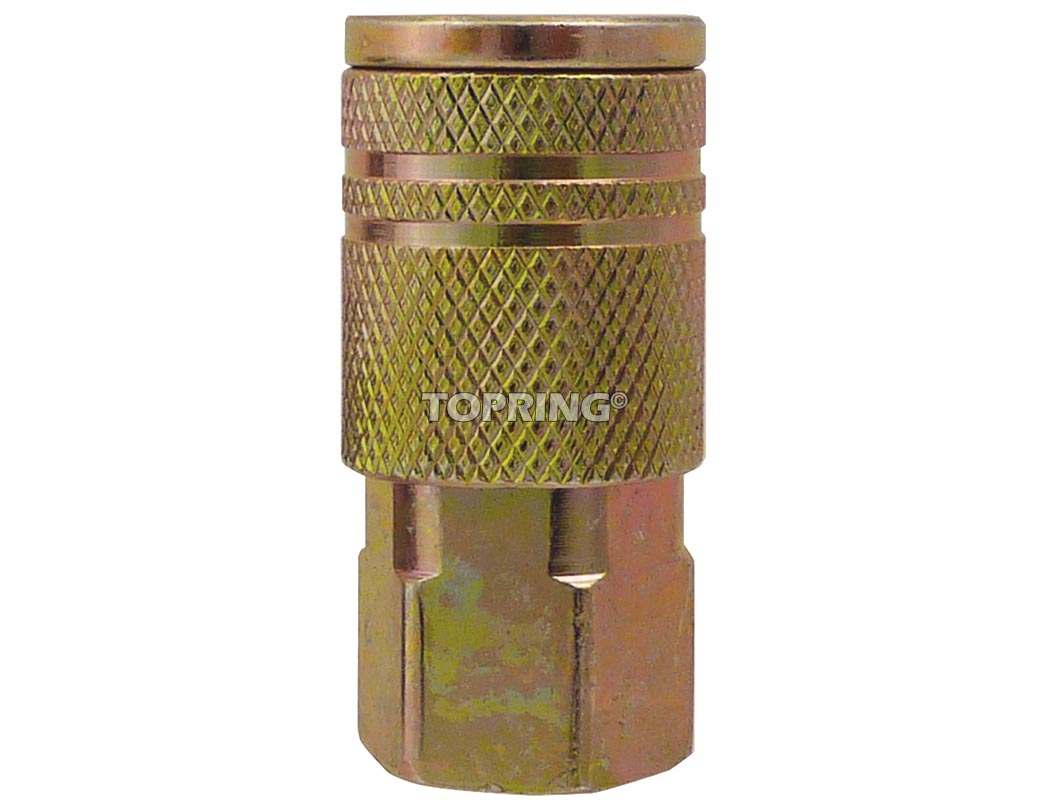

TOPRING 20.842 Coupler MAXQUIK (1/4 IND) 1/4(F)NPT

Description

Technical specifications and certifications
• Thread: 1/4 (F) NPT
• Maximum Working Pressure: 250 PSI
• Working Temperature: -40 to 107 °C
• Airflow: 24 SCFM at 100 PSI inlet with 10 PSI pressure drop

Material(s):
• Body: Zinc plated steel
• Backnut: Zinc plated steel
• Sleeve: Zinc plated steel
• Valve: Zinc plated steel
• Valve Spring: Nickel plated steel
• Locking Mechanism: Nickel plated steel
• Seals: Nitrile rubber

Features and benefits
• Accept 1/4 INDUSTRIAL interchange plugs (A-A-59439)
• Sleeve must be manually retracted to connect or disconnect the plug
• Compact and economic design
• Four-ball locking mechanism allows for a tight and long-lasting connection
• Sleeve guard prevents accidental disconnection
• Deep knurled sleeve for a better grip

Applications

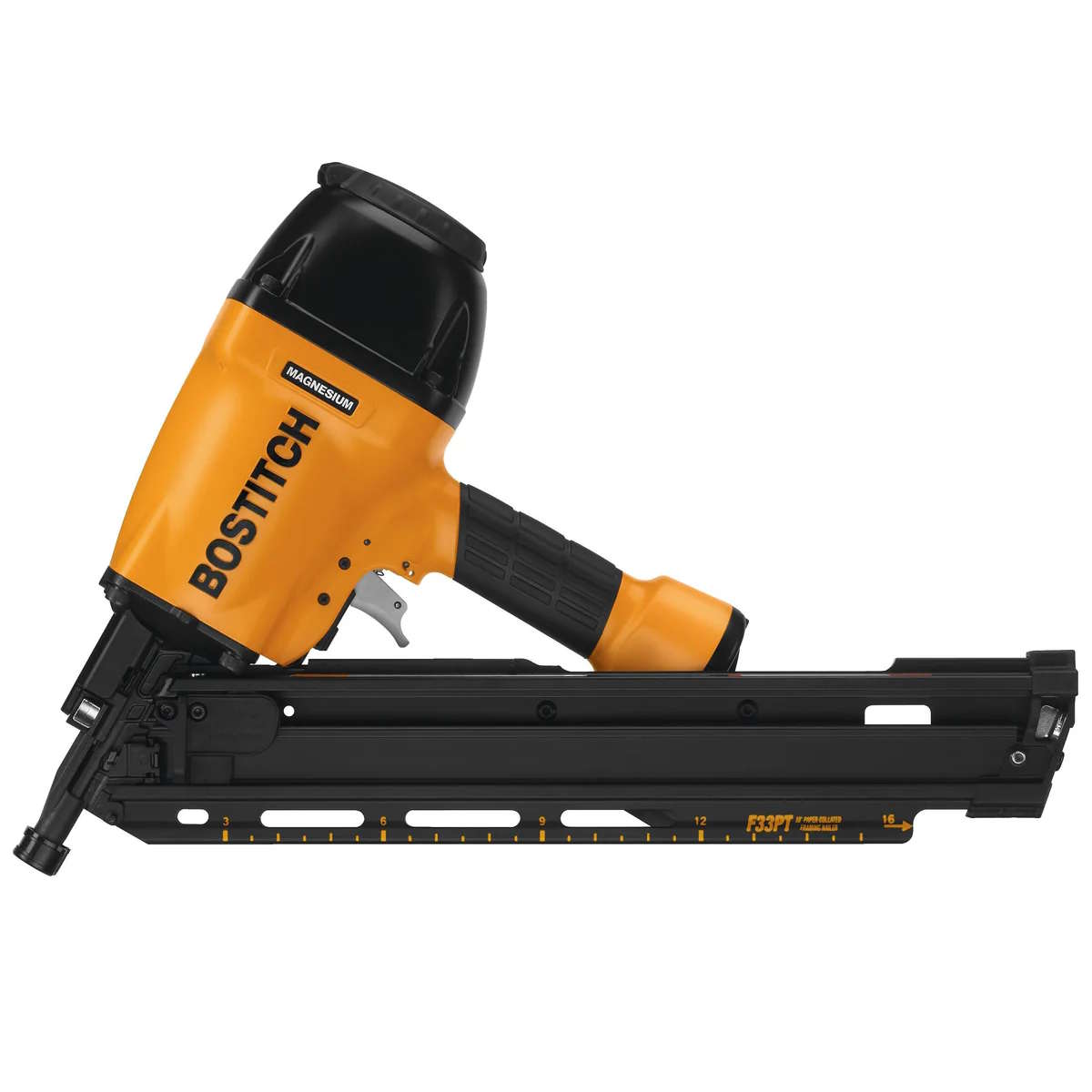

• Air tools (staplers, nailers, screwdrivers, etc.)
